Introduction
MP3 known as MPEG-I (Moving Picture Experts Group) layer 3. It is a standard format for storing compressed audio files. MP3 using MDCT and sub-band coding technology, MP3 can compress audio file into 1:12 compression. Uleadtek have used ASIC as decoder; DSP as MP3 encoder and decoder to compress or decompress audio file, it will take less power to operation.
Uleadtek have designed fully functional audio decoder to support all different kinds of audio files (MPEG-I layer 3, MPEG-II layer 3, AC-3, and WMA) and output quality which include (Mono, Stereo, and Surround Sound system).

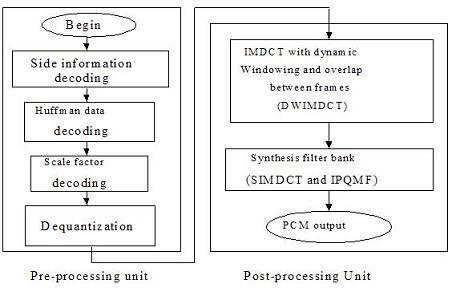

Uleadtek 0.18um, 3.3V MP3 (Hardwire) Decoder "G3000A"

General Description:

The "G3000A" consists of MP3 decoder and interface for Digital-to-Analog Converter (DAC). It is capable of receiving the stream data compressed by the encoder meeting the MPEG1 / LayerIII standard.

However, the parallel PCM data cannot be accessed directly by DAC, therefore, G3000A involves in the works in which the parallel data is transformed into the serial format accepted by DAC and the related DAC control signals are created. Fabricated by highly advanced 0.18um CMOS Process, it provides the advantages in power consumption and smaller die size over it's DSP-based counterparts.

Key Features:

• Pure silicon MP3 decoder supporting all the specifications defined in ISO/IEC 11172-3 MPEG-1 layerIII
  • Three Kinds of sampling frequencies(32k, 44.1k, and 48k Hz)
  • All allowable data rate(32k, 40k, 48k, 56k, 64k, 80k, 96k, 112k, 128k, 160k, 192k, 224k, 256k and 320k bps)
  • Four sound modes(stereo, joint_stereo, dual_channel, and single_channel)
  • Four Window types(normal, start, short, and end)
• Pure silicon implementation to diminish power dissipation and memory usage
• Built-in DAC interface block to generate serial data and the necessary control signals for the external Digital-to-Analog Converter(DAC).

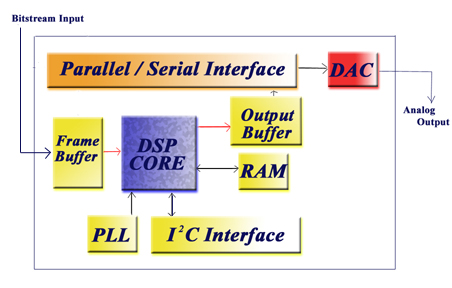

Uleadtek /w Fully functional DSP to perform the best audio Encoder and Decoder solutions.

General Description:

Uleadtek's new powerful G4000 DSP chip is suitable to develop all the audio standards available in the current market such as MP3, AC3, WMA... etc. Uleadtek already finished the MP3 decoder design on the DSP chip, which fully meets the ISO/IEC 11173-3 MPEG1 LayerIII Standard.

Key Features:

• Supports all the Sampling Frequency of ISO/IEC 11172-3 MPEG1
  • Layer3:(32/44.1/48KHz)
• Serial Bit Stream Input Interface
• I2S/Normal Audio Data Output Format delivered via a Serial Bus
• Ultra-Low Power Design, Power Saving Mode
• DAC Master Clock (256*fs / 384*fs for 16/24 bit DAC) is supported
• Low Operating Voltage
• 100-Pin LQFP package

Uleadtek's MP3 Solution will "soon" comes with the Multiple support Mode!!!

"Sorry!!! This Multiple support Mode still Under Development"
